¶ QRG-014 - IEC 60320 Cable and PDU Visual Reference
Summary Visual identification reference for IEC 60320 power cables and PDU types commonly used in IT and data centre environments.
¶ Cables

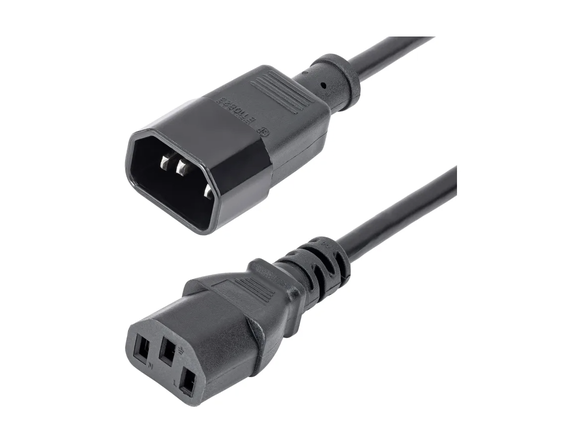

C13 to C14 — IEC extension lead

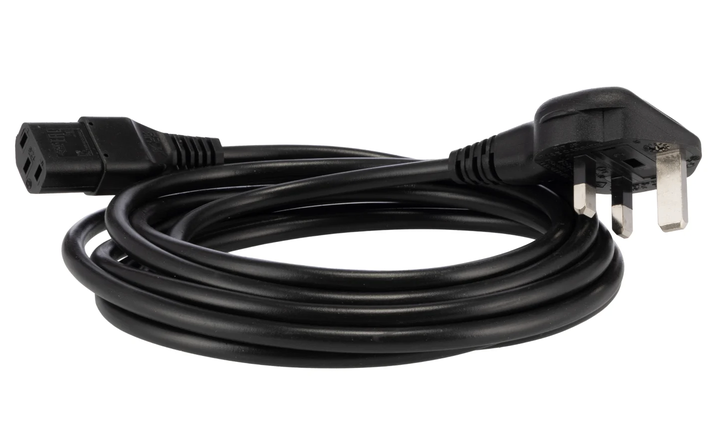

C13 to BS1363 — Standard UK mains cable

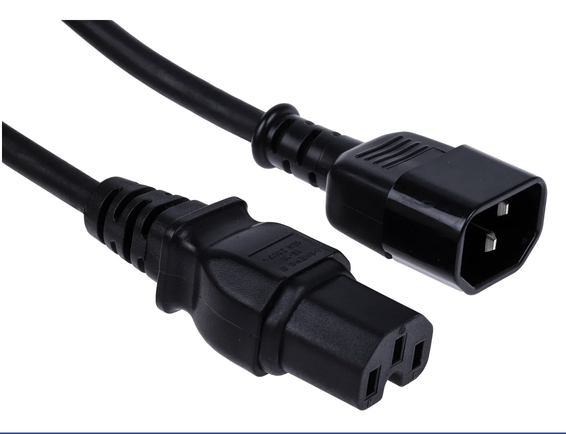

C15 to C14 — Hot condition extension lead

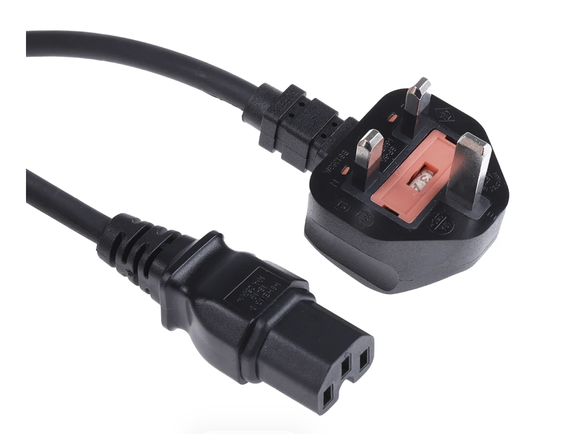

C15 to BS1363 — Hot condition UK mains cable

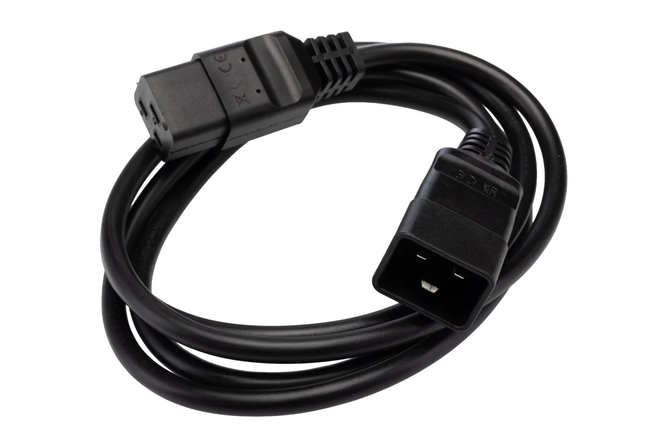

C19 to C20 — High-current extension lead
¶ PDUs

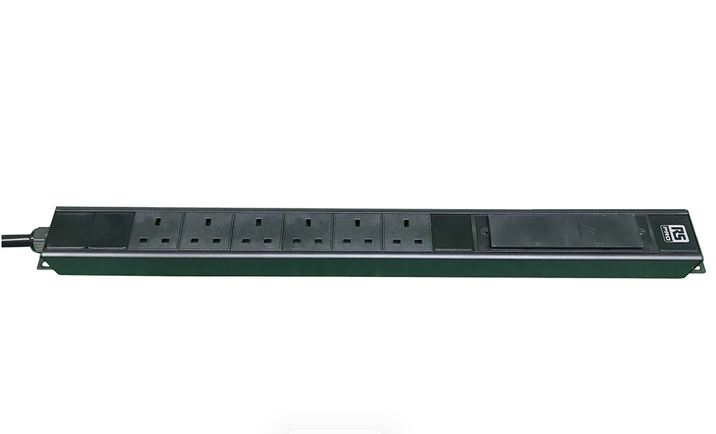

BS1363 PDU — UK 3-pin outlets, hardwired inlet

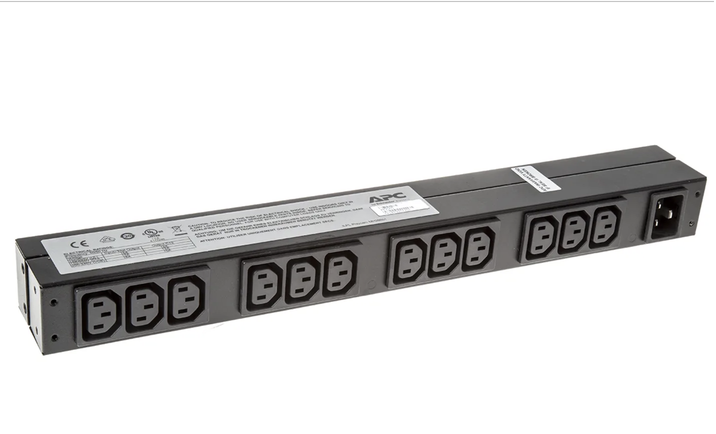

C13 PDU — C13 outlets (female), C20 inlet (male)
